Transmission 2.5" Universal Trunnion™
The Transmission Universal Trunnion™ expands the MPS Polymer Line Post portfolio with a standardized, versatile conductor attachment solution. Designed to simplify installation while maintaining the mechanical strength and electrical performance utilities expect. It supports consistent design practices across a range of system configurations.

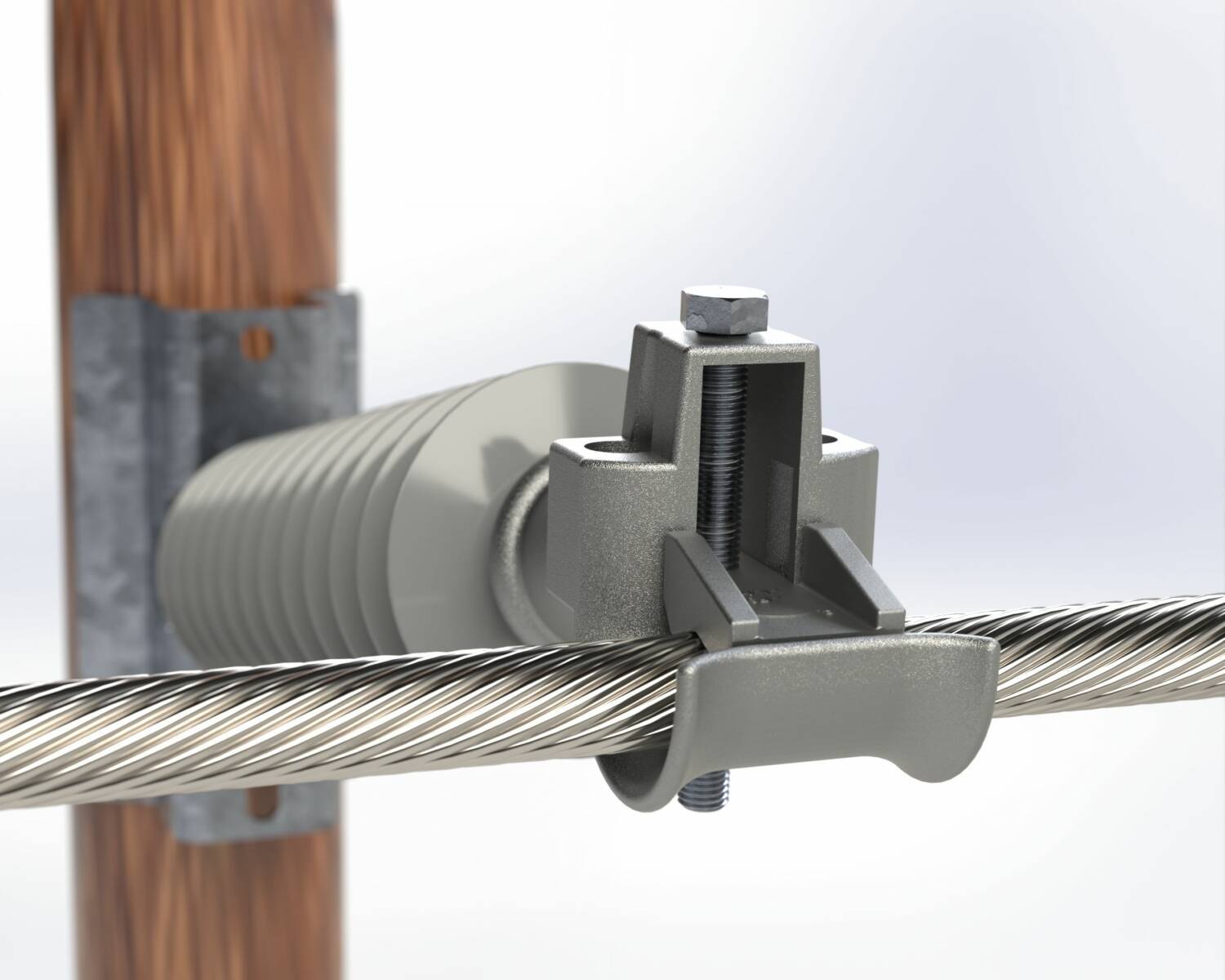

Conductor range taking clamp 0.74" to 2.42" with a single bolt adjustment.
The wide lip of the clamp top accommodates large angles of conductor line turns.
Integrated clamp design and captive clamping components aid in installation by eliminating loose secondary component assemblies.
Integrated with our state-of-the-art Biaxial Compression Seal, using two mechanical sealing features. Our BCS seal uses Crimp Under Pressure technology to attach the end fitting onto the line post while creating a water-tight seal and significantly extends service life.
Specially formulated silicone housing material maximizes hydrophobicity and eliminates maintenance needs such as pressure washing while helping to extend insulator service life.
Designed to mount in any orientation providing versatility in the line design.
Our Universal Trunnion™ design provides versatility in the field while expediting the installation process.
KEY FEATURES
- Range Taking Clamp: The integrated clamp design accommodates conductor diameters from 0.74” to 2.42”, eliminating the need for conductor specific clamp configurations
- Captive Clamping Components: Accelerates installation and eliminates risk of dropped components
- Rigid Conductor Connection: Not limited to 5,000 lb STL rating like traditional trunnions
- Multi-Orientation Installation: Mounts in any orientation providing versatility in the line design
