Pin Type, Jumper

15 degree Jumper brackets provide upsweep for clearance and a threaded end to attach accessories.



Features: Accepts 5/8" mounting hardware

Material Base: Aluminum, A356-T6

Material End Fitting: Ductile Iron, Hot Dip Galvanized

Material Rod: Fiberglass, gray ultraviolet (UV) protective veil coating

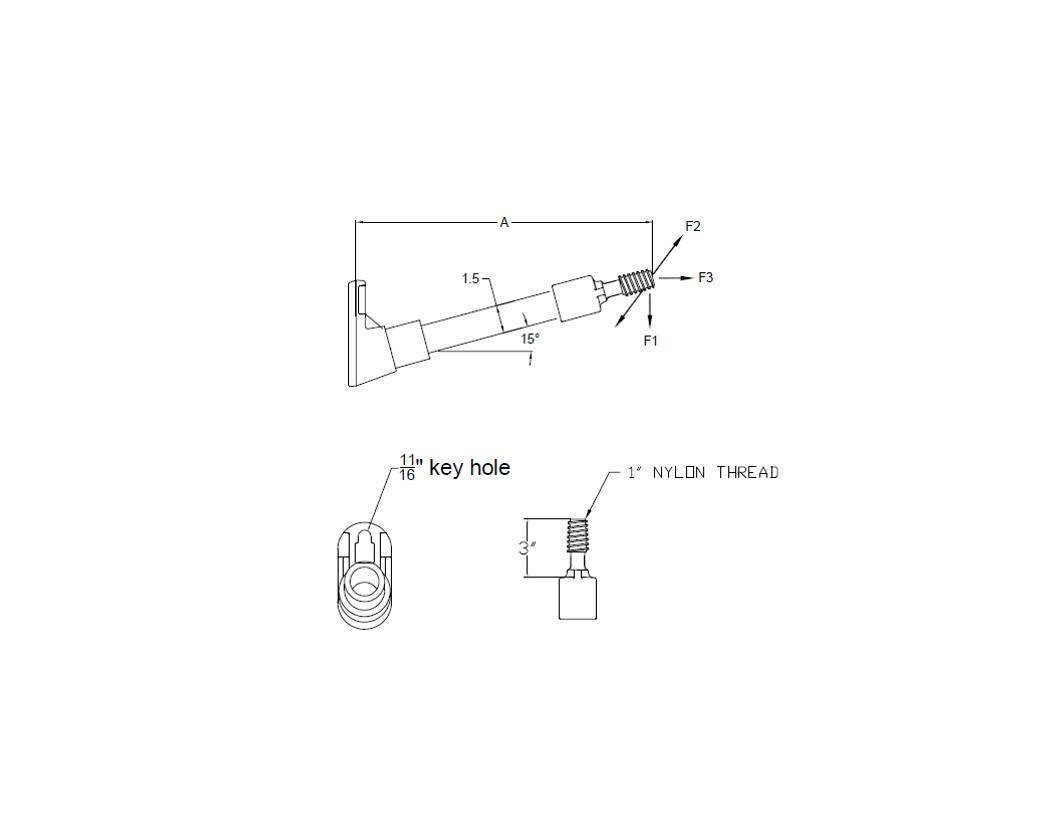

Single Phase Jumper Dim Drawing Image

Single Phase Jumper

Catalog Number A D Min Ultimate Load (lbs) F1 Vert Min Ultimate Load (lbs) F2 Long Min Ultimate Load (lbs) F3 Trans Weight Lbs (kg)
G1MAJ112DS5 12 1.5 1000 800 1500 3.5
G1MAJ113DS5 13 1.5 950 750 1500 3.6
G1MAJ118DS5 18 1.5 700 500 1500 4.3

1) Add "SC" for silicone coated rod (harsh environments)
2) For additional lengths, options, thread sizes, bases and end fittings contact MPS or reference the MPS Catalog Matrix Configurator in the Link section above
