Recloser Bypass Switch
|

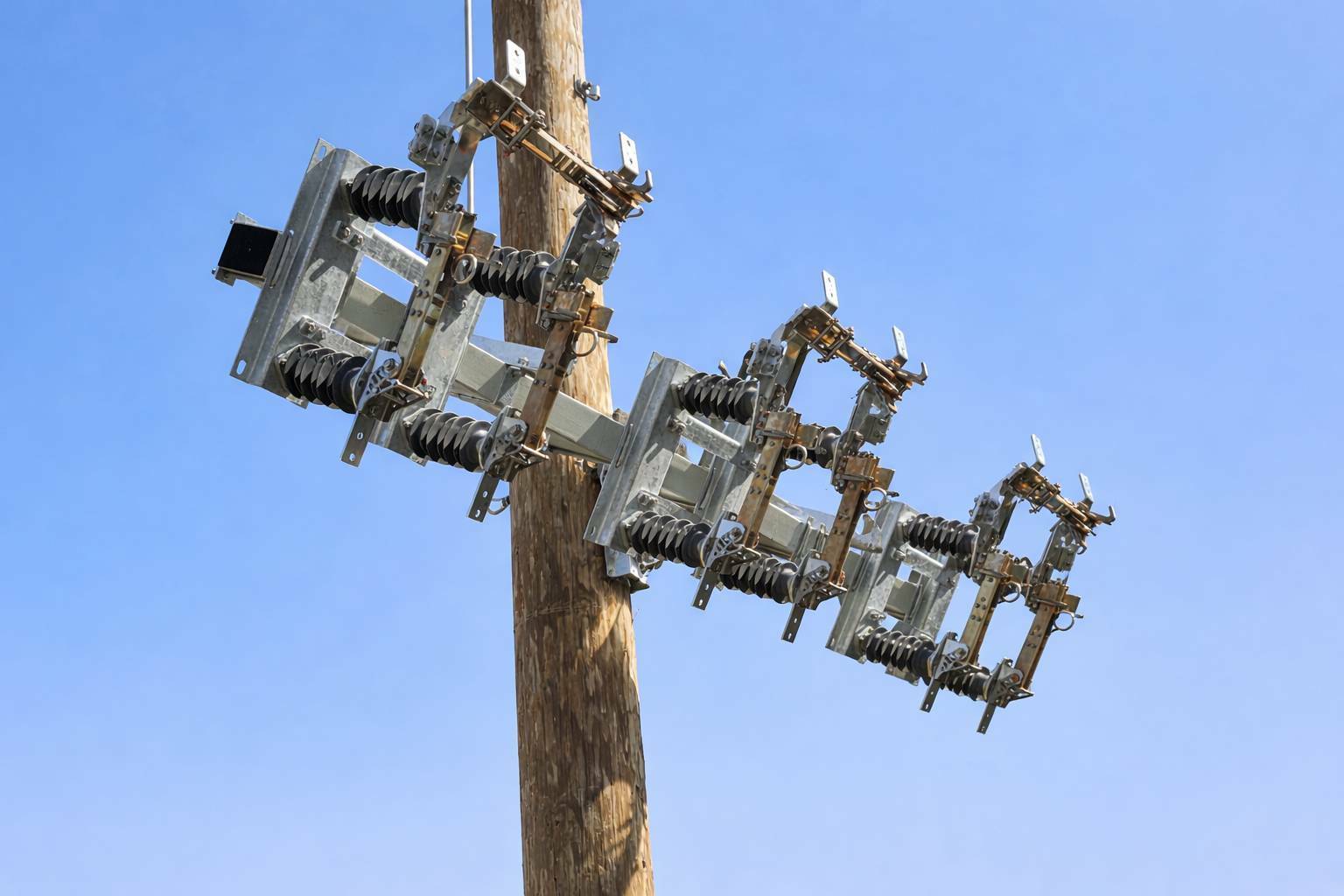

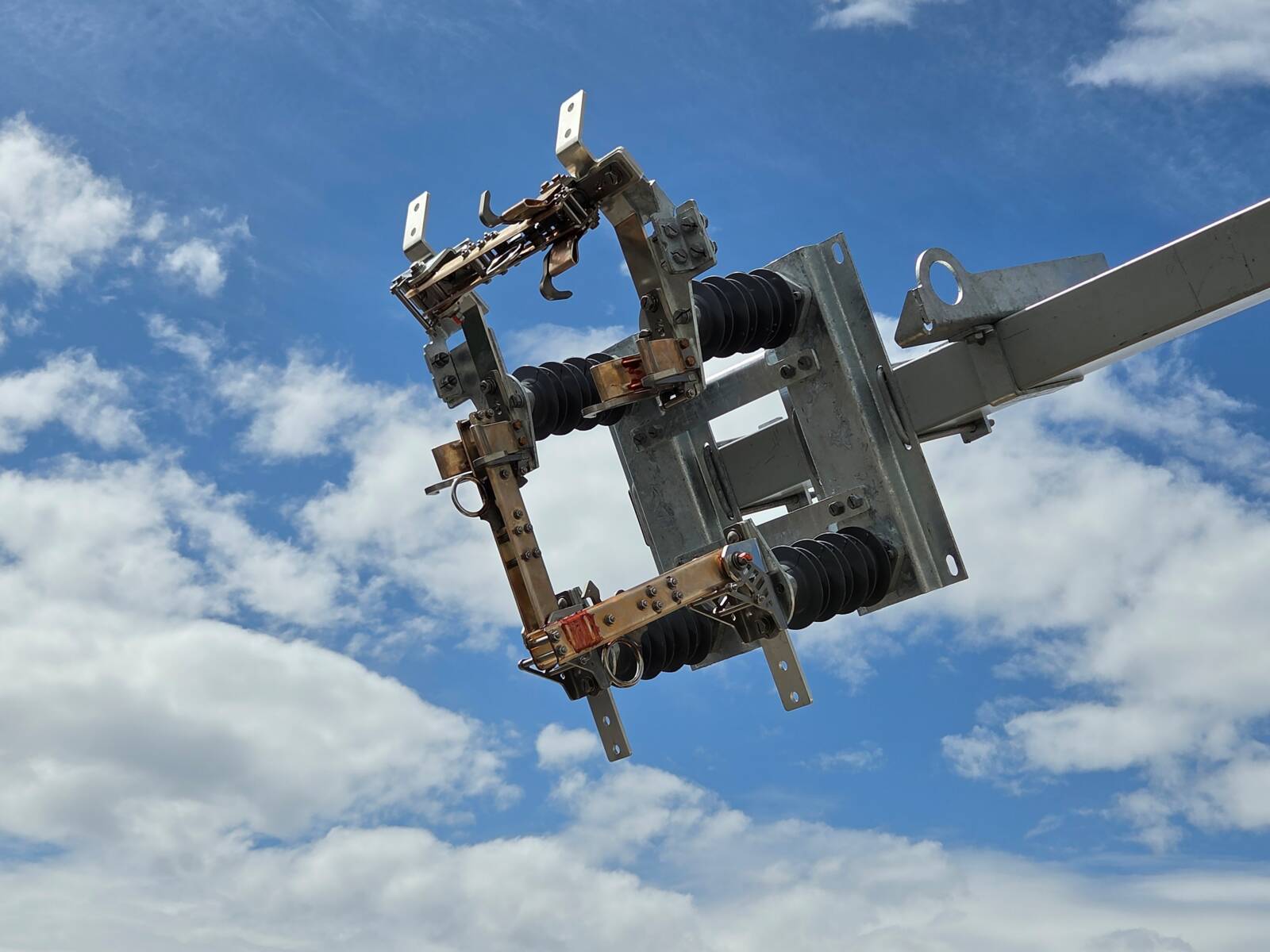

MacLean Power System's Recloser Bypass Switch offers an all-in-one solution for efficient recloser and equipment bypassing on your system. Each phase features three ERGO Switchâ„¢ blades that are used to safely bypass and isolate equipment on your system using common loadbreak tools. The ERGO Switchâ„¢ blades on each phase feature silver plated copper blades and reverse loop technology to ensure ease of operation and longevity on your system. The Recloser Bypass Switch is offered as a three-phase crossarm mounted, integral unit, or in a single-phase configuration for single-phase recloser or equipment bypassing. The Recloser Bypass Switch is fully tested and certified to IEEE C37.30.1-2022. Test reports are available upon request. |
| Catalog Number | Voltage Class | BIL | Continuous Current | Momentary Current |
|---|---|---|---|---|
| RB19SXFRK60 | 15 kV | 110 kV | 900 A | 40kA @ 10 cycles; 25 kA @ 3 seconds |
| RB29SXFRK60 | 25 kV | 150 kV | 900 A | 40kA @ 10 cycles; 25 kA @ 3 seconds |
| RB39SXFRK60 | 35 kV | 200 kV | 900 A | 40kA @ 10 cycles; 25 kA @ 3 seconds |
