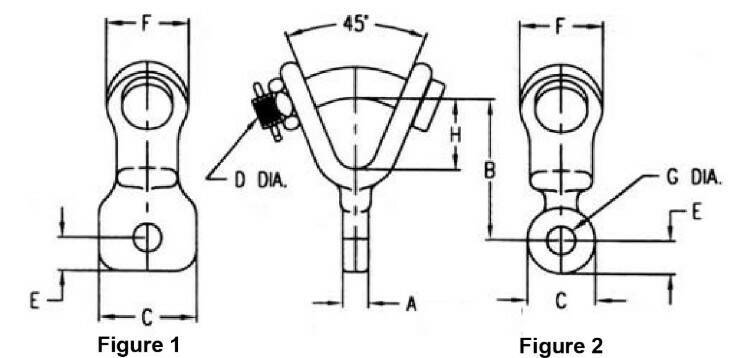

Y-Clevis Eye, 90° & Standard
Material: Ductile Iron, Hot Dip Galvanized
| Catalog Number | Fig. | Ultimate Strength (lbs) | A | B | C | D | E | F | G | H | Weight/100 (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YCE-65-625 | 2 | 19,000 | 8-May | 3/1/2002 | 1/5/2008 | 4-Mar | 13/16 | 2 | 16-Nov | 1/3/2004 | 205 |
| YCE-65-625A | 1 | 30,000 | 8-May | 3/1/2002 | 2/3/2008 | 4-Mar | 15/16 | 2/1/2008 | 16-Nov | 1/3/2004 | 220 |
| YCE-66-750 | 2 | 30,000 | 4-Mar | 3/5/2008 | 2 | 4-Mar | 1 | 2/1/2008 | 13/16 | 1/3/2004 | 240 |
| Catalog Number | Fig. | Min Ultimate Strength | A | B | C | D | E | F | G | H | Weight/100 (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RYCE-65-1062 | 2 | 30000 | 1 1/16 | 2 1/2 | 1 9/16 | 4-Mar | 13/16 | 2 | 16-Nov | 1 3/4 | 275 |
| RYCE-65-2000 | 2 | 30000 | 2 | 2 9/16 | 1 3/4 | 4-Mar | 4-Mar | 2 1/8 | 16-Nov | 1 9/16 | 295 |
| RYCI-65-2500 | 2 | 30000 | 2 1/2 | 2 5/8 | 1 5/8 | 4-Mar | 13/16 | 2 | 16-Nov | 1 5/8 | 310 |
| RYCE-65-625A | 3 | 30000 | 8-May | 2 5/8 | 2 1/8 | 4-Mar | 15/16 | 2 1/8 | 16-Nov | 1 13/16 | 220 |
| RYCE-66-1062 | 2 | 25000 | 1 1/16 | 2 1/2 | 1 9/16 | 4-Mar | 13/16 | 2 | 13/16 | 1 3/4 | 270 |
| RYCE-66-1250 | 2 | 30000 | 1 1/4 | 2 7/16 | 1 5/8 | 4-Mar | 13/16 | 2 13/16 | 13/16 | 1 9/16 | 275 |
| RYCE-66-1750 | 2 | 30000 | 1 3/4 | 2 9/16 | 1 3/4 | 4-Mar | 13/16 | 2 1/8 | 13/16 | 2 | 285 |
| RYCE-66-2000 | 2 | 30000 | 2 | 2 9/16 | 1 3/4 | 4-Mar | 4-Mar | 2 1/8 | 13/16 | 1 9/16 | 295 |
| RYCE-66-2125 | 1 | 30000 | 2 1/8 | 2 5/8 | 1 5/8 | 4-Mar | 13/16 | 2 1/8 | 13/16 | 1 7/8 | 305 |
| RYCE-66-875 | 2 | 30000 | 8-Jul | 3 1/2 | 2 | 4-Mar | 15/16 | 2 1/8 | 13/16 | 1 3/4 | 275 |
| RYCI-65-1750 | 1 | 30000 | 1 3/4 | 2 5/8 | 1 1/2 | 4-Mar | 4-Mar | 2 1/8 | 16-Nov | 1 7/8 | 245 |
| RYCI-65-2187 | 1 | 30000 | 2 3/16 | 2 5/8 | 1 1/2 | 4-Mar | 4-Mar | 2 1/8 | 16-Nov | 1 7/8 | 305 |
